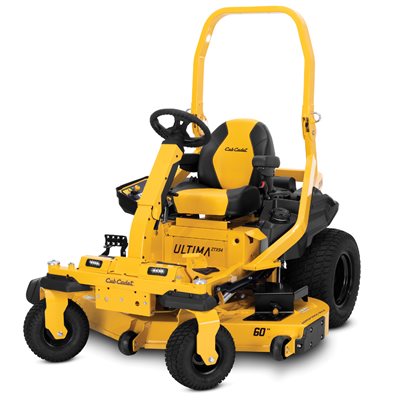

ZERO TURN STEERING ULTIMA ZTXS4 60'' FAB KHOLER 26HP

Product Code: 120-ZTXS460

MODEL : 47RSCAB8A10

ENGINE:

Engine type : 24 HP* Kohler® KT-Pro 7000 Series V-twin OHV
Fuel tank capacity : 5.5 gal

CUTTING DECK:

Deck construction : 10-gauge AeroForce Max™ fabricated / 2-gauge reinforcement / 7-gauge side wraps / skid plate
Cutting width / blades : 60" / triple blade
Deck cutting height : 1" – 4.75" / 5" transport
Anti-scalping wheels : 2 front / 1 nose roller
Deck blades engagement : Electronic fingertip engagement
Deck lift : Foot-operated / 17 positions / dial adjust / transport mode
Deck wash : No
Spindle construction : Sealed ball bearing spindles / maintenance-free

DRIVE SYSTEM:

Transmission : Dual Hydro-Gear® ZT 3100
Forward / Reverse speeds : Up to 8 mph / 3.5 mph

CHASSIS:

Frame : Rectangular 1.5" x 3" tubular upper and lower frame structure
Front Caster Mounts : Rectangular 1.5" x 3" tubular frame / offset
ROPS : Standard
Front tires : 13" x 6.5" – 6" (Turf Master®)
Rear tires : 22" x 12" – 12" (Turf Master®)
Rear Tow Hitch : Standard

CONTROLS:

Steering : Steering wheel with Synchro-Steer™ technology
Mow in Reverse : RevTEK™ reverse mowing technology
Parking Brake : Standard lever

COMFORT:

Seat : 20" high-back adjustable seat with cushioned armrests, ball-bearing seat slide and suspension system
Steering : Soft-Touch steering wheel with adjustable steering column
Floor Mat : Standard
Additional Features : Cup holder, dual LED headlights, removable floor pan and hour meter

WARRANTY:

4-year 800 hours limited product warranty / limited lifetime frame and fabricated deck shell warranty
$11,699.95
  • Series : ZTXS Ultima (Steering)
  • Cutting Deck Width : 60''
  • Deck Construction : Fabricated
  • Engine Brand : Kohler
  • Engine type : Twin Cylinders
  • Engine Power : 24HP
  • Deck engagement (PTO) : Electric
  • Differential Type : Independent Wheels Drive
  • Quantity Available: 0
